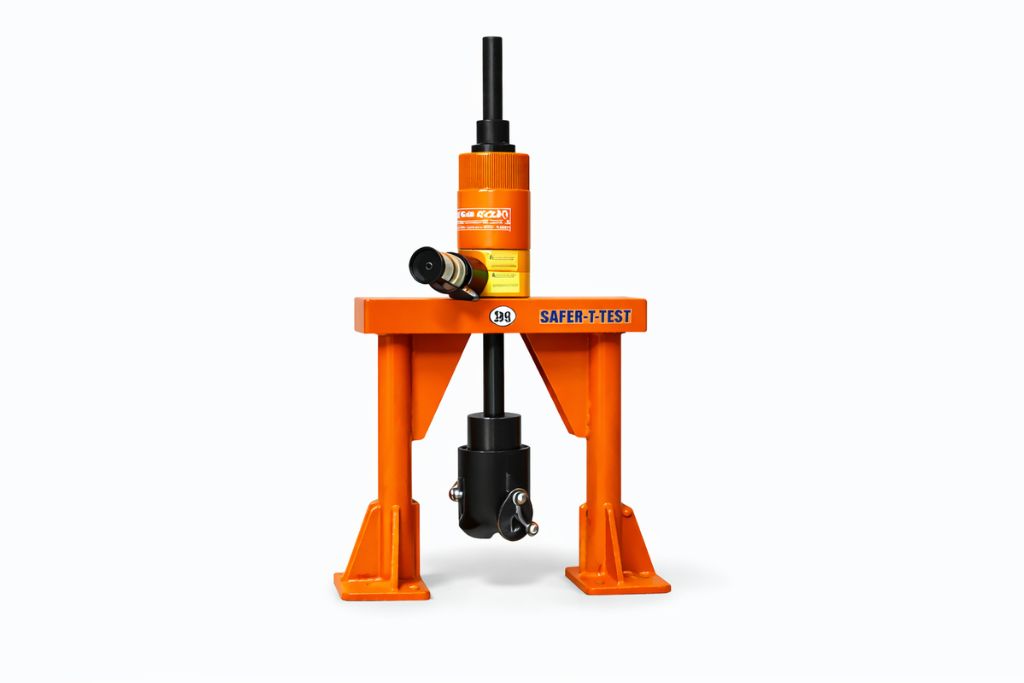

Heavy-Duty Pad Eye Load Test Frame with Hydraulic System
Description
Safe-T-Made’s Pad Eye Testers are essential hydraulic testing devices designed for marine and offshore applications. These robust testers verify the integrity and load-bearing capacity of pad eyes, clevis pins, and lifting points on vessels, platforms, and marine structures. Available in 50-ton and 100-ton capacities, these testers ensure compliance with safety regulations and prevent equipment failure during critical lifting operations.
Key Features
Versatile Installation
- Can be mounted on any surface plate for flexible testing configurations
- Adjustable height regulation using threaded rod and spanner wrench system
- Portable design allows for on-site testing in diverse marine environments
Hydraulic Operation
- High-pressure hydraulic system with detachable quick-coupling nozzle
- Operated via included hand pump for precise pressure control
- Optional digital or analog pressure gauge for accurate load monitoring
Robust Construction
- Heavy-duty black frame with yellow/orange hydraulic cylinder
- Durable materials suitable for harsh marine conditions
- Engineered for repeated testing cycles with minimal maintenance
Technical Specifications
50-Ton Model:
- Clevis Pin Diameter: 60mm
- Capacity: 50 tonnage
- Unit Weight: 130 kg
- Unit Height: 850 mm
100-Ton Model:
- Clevis Pin Diameter: 100mm
- Capacity: 100 tonnage
- Unit Weight: 280 kg
- Unit Height: 1116 mm
Applications
Ideal for testing lifting points, pad eyes, and attachment points on:
- Ships and marine vessels
- Offshore platforms and rigs
- Port facilities and dockside equipment
- Container handling systems
- Marine construction equipment

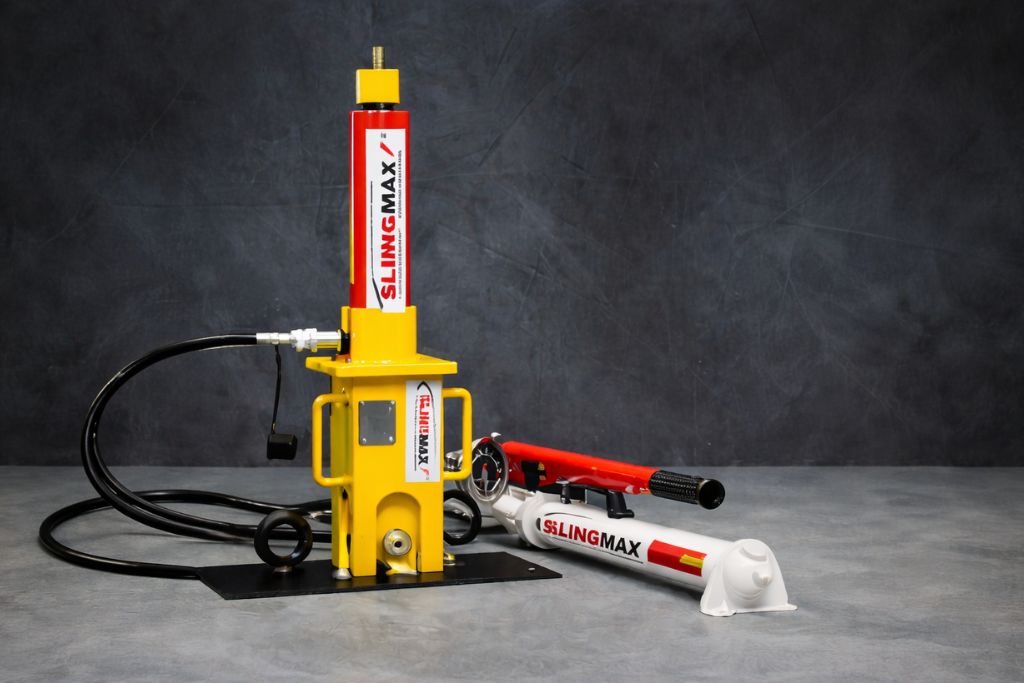

Package Includes
- Pad eye tester main unit
- Hand pump with pressure gauge
- Spanner wrench for height adjustment
- Complete hydraulic hose assembly with quick couplings
Safety & Compliance
These testers help marine operators comply with classification society requirements and international safety standards for load-bearing equipment inspection and certification.
